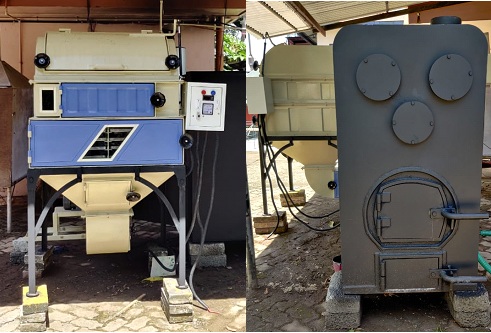

The dryer consists of a drying chamber, blower, biomass furnace, and hot air recirculatory system. The capacity of the dryer is 30-40 kg with 10 trays. The tray dimension is 0.9m x 0.45m. The drying chamber dimension is 0.9 m x 0.9 m.  The biomass furnace capacity is 25kg (wood) with the dimension 0.77 m x 1.76 m x 1.42 m.  It is provided with a blower of 0.5 hp and an axial fan of 0.25 hp. This dryer is suitable for drying all types of materials including fruits, vegetables, spices, and condiments. It will be highly economical to operate where biomass availability is abundant and free of cost. The cost is approximate Rs.1.5 lakhs.

Technology Benefits

• Ideal for drying of fish, fruits, vegetables, spices and agro products
• Hygienically prepared premium quality uniformly dried product
• Economically viable
• The drying time is reduced considerably with improved product quality
• Lesser operating expenses
• Improved shelf life and value addition of the product fetches higher income for the fisher folk.
• Labor requirement is considerably reduced compared to open sun drying
• Re-handling process like spreading, sorting and storing are eliminated
